2-6 JOULES ENERGISER

MARS 2-6 Fence Energizers

Performance Characteristics

output voltage: 10-14kv

pulse width: 0.130 ms

Stored energy: 2-7 Joules

Consumption(Max): 4.2-8.4 Watt

Package Contents

1 x Electric Fence Energizer

1 x Mains power adaptor

1 x Lead-out cable (red) to connect Energizer to fence

1 x Earthing cable (green) to connect Energizer to earthing system

1 x Set of leads to connect Energizer to battery option (red and black clips)

1 x user manual

1 x box packaging

The working state can be controlled by these two buttons(UP/DOWN)

	Hold-on mode: the green led indicator is on, off; Lcd shows the battery voltage and right number is 00.0. Under hold-on mode, the energizer does not generate pulse.
	Full energy mode: energizer generates full output energy pulse periodically and the interval is 1.5 second. The green led indicator is on and all red led indicators are on; LCD shows the real output voltage
	Half energy mode: energizer generates half output pulse periodically and the interval is 1.5 second. The green led indicator is on and all red led indicators are on; LCD shows the real output voltage
	Short-day, long-night mode : In the daytime, pulse will be generated each 1.5 seconds ; while at night, pulse will be released by energizer each 2.5 seconds.
	Long-day, short-night mode : In the daytime, pulse will be generated each 2.5 seconds ; while at night, pulse will be released by energizer each 1.5 seconds.
	Battery mode: the energizer generates half pulse with 2.5 seconds. The green led indicator is on and red led indicators are on. When battery is running out, all the indicators will be off and energizer will do not work.

 Connecting to the power source

The Electric Fence Energizer can operate using mains power, 12 v deep cycle lead-acid/gel battery or solar and lead-acid/gel battery.

Mains power

1. Attach the mains power adaptor to the Energizer – insertion point on reverse side of unit – and plug into the mains power socket

2. DO NOT turn the mains power on until the powered fence system is fully constructed and you are ready to use it

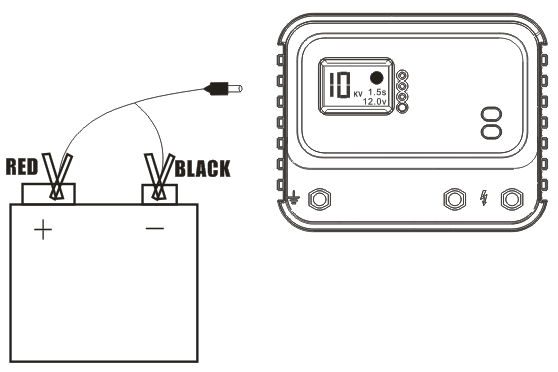

Battery (not included)

1. Always use a 12 v deep cycle lead-acid/gel battery

2. Site the battery in a well-ventilated area

3. Attach the battery cable to the Energizer – insertion point on the reverse of the unit

4. Connect the RED clip to the POSITIVE (+) terminal of the external battery

5. Connect the BLACK clip to the NEGATIVE (-) terminal of the external battery

Battery: Lead-acid or other kind of battery with voltage more than 12 v

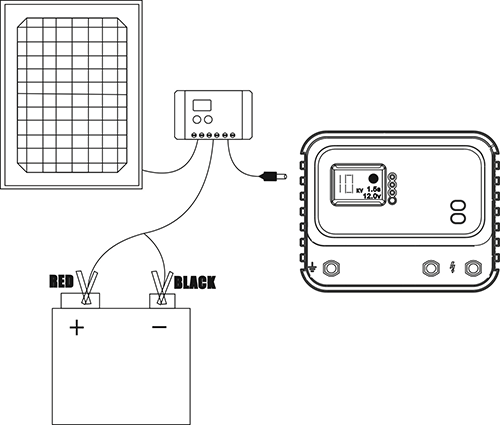

Solar/battery (not included)

1. The Electric Fence Energizer is compatible with a minimum 40 w solar fence panel and a 12 v deep cycle lead-acid/gel battery

2. Set up the solar panel as per the instructions enclosed with it using the appropriate regulator. If you bought your solar panel it will include the correct charging regulator.

3. Set up the 12 v deep cycle lead-acid/gel battery as per above instructions for Battery

Solar panel: voltage more than 12 v solar controller or battery is necessary)

Package details：

weight ：2.3 kg

Measures ：380*261*112mm

Outer cartons Measures(6 pcs) : 550*400*360mm

for more details , pls contact us .
