MULTI-FUNCTION ENERGISER-TH-SAFER 2/5

MULTI-FUNCTION ENERGISER

electric fence energiser security fence controller

TH- SAFER 2/5

ELECTRICAL SPECIFICATION

1.INPUT: AC110-240V OR DC18V OR DC12V2.0UTPUT PEAK VOLTAGE:2KV-10KV (ADJUSTABLE)

4.PULSE DURATION: ≤0.1 Second

5.PULSE INTERVAL TIME: 1.3S6.MAX ENERGY OF OUTPUT:2.0 /5.0J . can work with other modern security products.

9.Spacious space is enough for 4 Ah back up lead acid battery,inteligent battery management wi protect battery

Features

New generation energizer that can be used as a simplesecurity fencing energizer, but can also be a alarm panel,there is alarm input for gate magnetic contacts or Infrareddetector or other kind of sensor and detector with NO/NCoutput.
LCD or LED indicate the zone lD\ the working state i thevoltage of live wire.
The intelligent fault detection system (FD tech),LCD showsthe energizer problem directly ,make the warranty moreeasy .

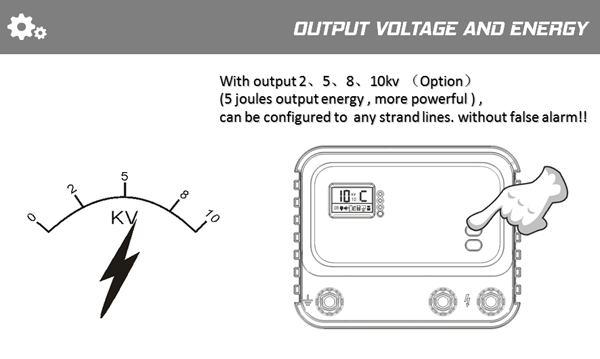

Different voltage switch manually (0,2,5,8,10kv), long distance equipment auto switch function.
RS 485 communication protocol offer long distance management solution.

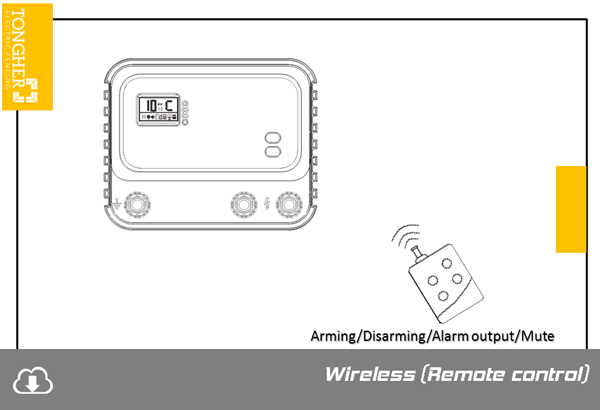

Remote control (wireless) makes the arming or disarmingeasily from any place.

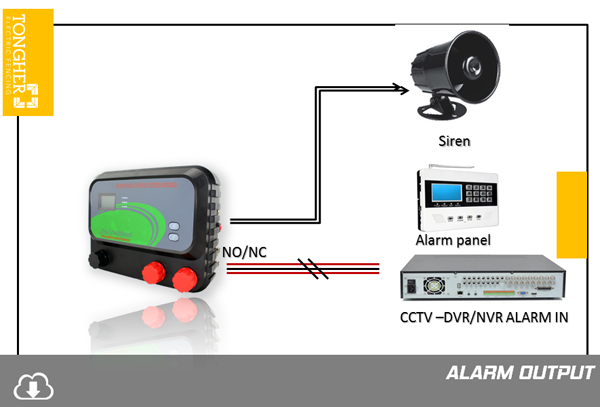

DC12V, NC/NO dry contact alarm output can work with other modern security products

Energy (stored):

2-6Joules

Energy (output):

2-5Joules

Multiwire Distance (Tongher Recommendation):

500-600@4wire

Power Source:

Mains power / Battery / Solar
